4通道红外遥控继电器电路,4 channel infrared remote relaysDescripTIon

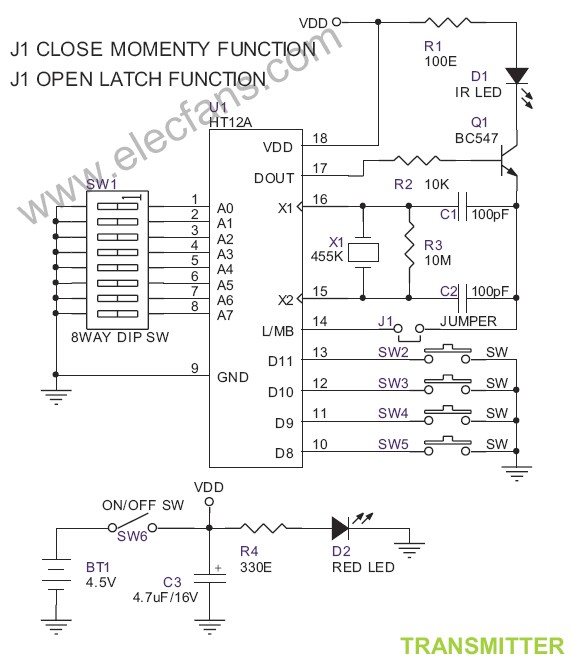

Transmitter SchemaTIc

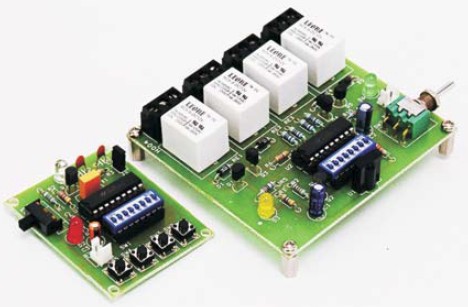

4 Channel Infrared (IR) Remote is a simple kit using the famous HT12A and HT12D encoder / decoder chips from Holtek

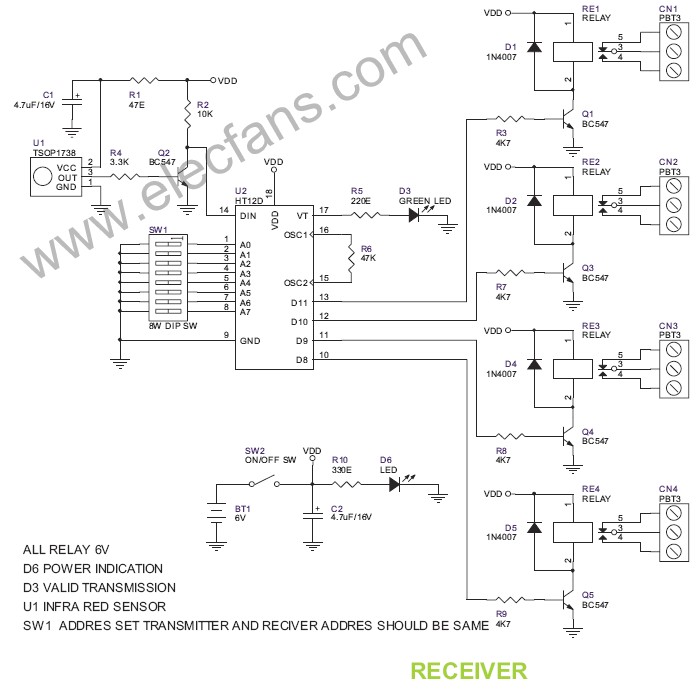

Receiver SchemaTIc

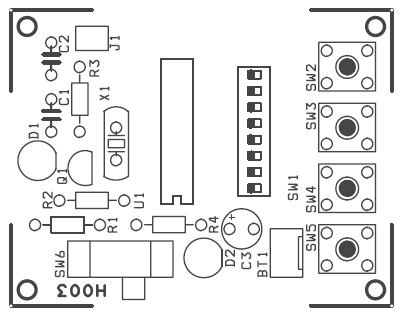

Transmitter PCB

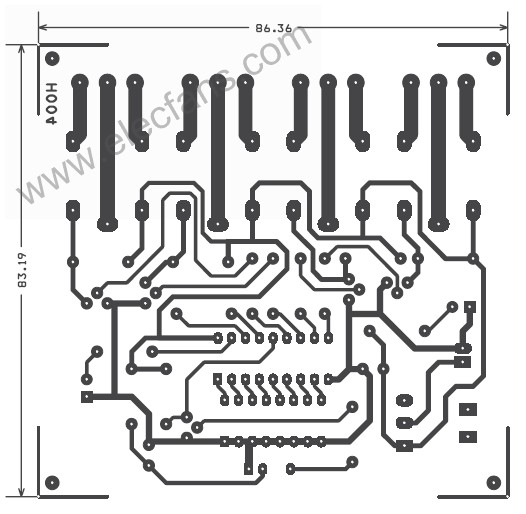

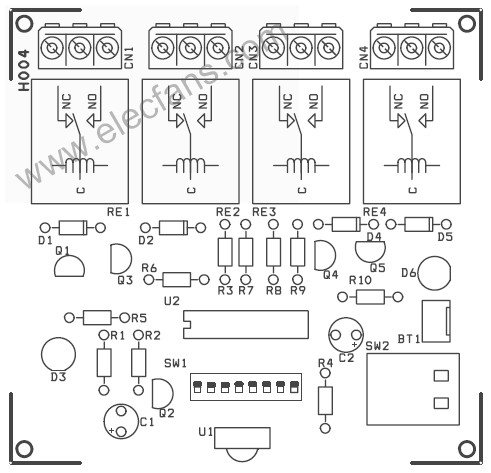

Receiver PCB
