Linear LT8500 48路LED PWM发生器解决方案
来源：中电网 作者：--- 时间：2011-08-07 00:00
Linear 公司的LT8500是具有12位分辨率和解0MHz级联串口的48路led PWM发生器,输入电压3V-5.5V,有48个单独的PWM输出,高达6.1kHz的PWM频率(PWMCK = 25MHz),主要用在大屏显示器LED背光,单色,多色和全色LED显示器,马大哈控制,工业控制,ATE和机器人.本文介绍了LT8500主要特性,方框图以及多种应用电路.
48-ChannEL LED PWM Generator with 12-Bit Resolution and 50MHz Cascadable Serial Interface
The LTR8500 is a pulse width modulation (PWM) generator with 48 independent channels. Each channel has an individually adjustable 12-bit (4096-step) PWM register and a 6-bit (64-step) ±50% correction register. All controls are programmable via a simple serial data interface. Three banks of 16-channels each can be configured such that they operate 120° out-of-phase with each other.
The LT8500 features two diagnostic information flags: synchronization error and open LED. The flags are sent, with additional state information, on the serial data interface during status read back. The 50MHz cascadable serial data interface includes buffering and skew-balancing, making the chip suitable for PWM intensive applications such as large screen LCD dynamic backlighting and mono-,multi- and full- LED displays. The LT8500 is also ideally suited to control three LT3595A LED drivers.
LT8500主要特性:
3V to 5.5V Input Voltage
48 Independent PWM Outputs
TTL/CMOS Logic 50MHz Serial Data Interface
12-Bit (4096 Steps) PWM Width Resolution
6-Bit (64 Steps) PWM Correction (±50% of Programmed PWM Width)
Up to 6.1kHz PWM Frequency (PWMCK = 25MHz)
Phase-Shift Option Reduces Switching Noise
Directly Controls Three LT3595A 16-Channel LED Drivers
Diagnostic Information: Sync Error/Open LED Flags
56-Pin (5mm × 9mm × 0.75mm) QFN Package
LT8500应用:
Large Screen Display LED Backlighting
Mono-, Multi-, Full-Color LED Displays
LED Billboards and Signboards
Motor Control
Industrial Control
Automated Test Equipment
Robotics

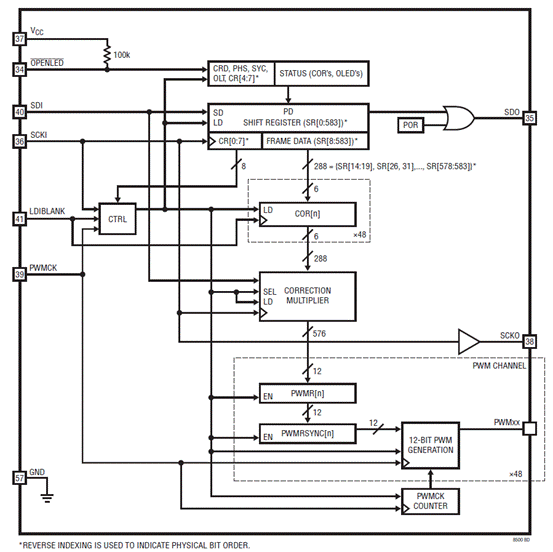

图1.LT8500方框图

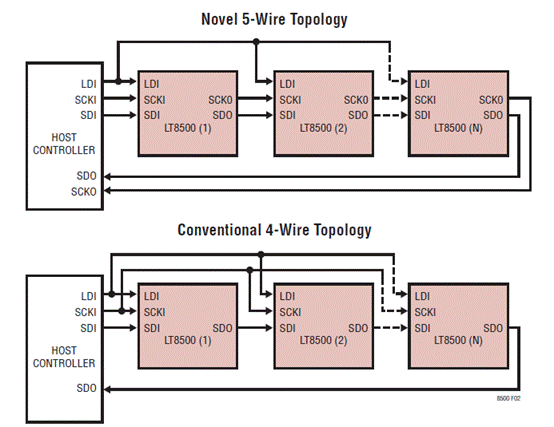

图2.LT8500串行接口拓扑图

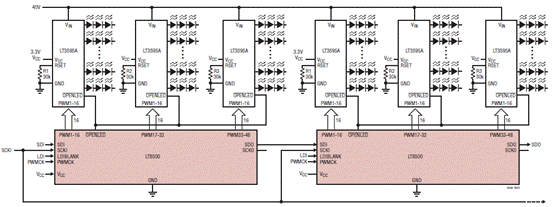

图3.LT8500采用5引脚拓扑驱动LT3595A的菊花链框图

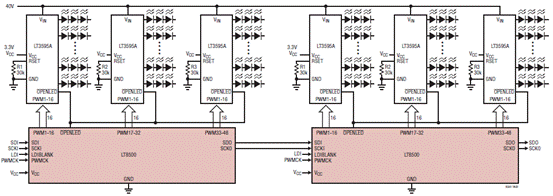

图4.LT8500采用4引脚拓扑驱动LT3595A的菊花链框图

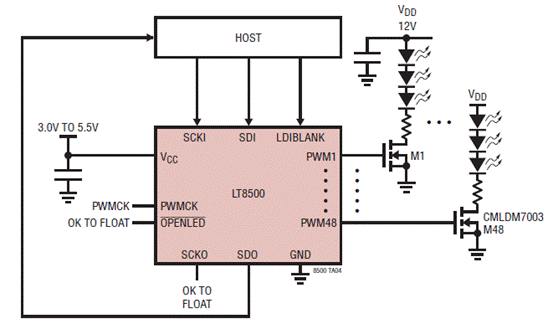

图5.单个LT8500驱动电阻镇流的48个LED串电路图

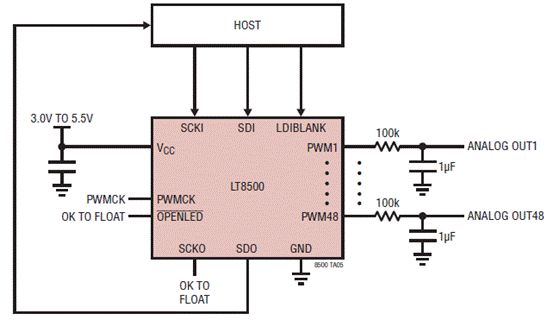

图6.单个LT8500实现48个DAC通路图
48-ChannEL LED PWM Generator with 12-Bit Resolution and 50MHz Cascadable Serial Interface
The LTR8500 is a pulse width modulation (PWM) generator with 48 independent channels. Each channel has an individually adjustable 12-bit (4096-step) PWM register and a 6-bit (64-step) ±50% correction register. All controls are programmable via a simple serial data interface. Three banks of 16-channels each can be configured such that they operate 120° out-of-phase with each other.
The LT8500 features two diagnostic information flags: synchronization error and open LED. The flags are sent, with additional state information, on the serial data interface during status read back. The 50MHz cascadable serial data interface includes buffering and skew-balancing, making the chip suitable for PWM intensive applications such as large screen LCD dynamic backlighting and mono-,multi- and full- LED displays. The LT8500 is also ideally suited to control three LT3595A LED drivers.
LT8500主要特性:
3V to 5.5V Input Voltage
48 Independent PWM Outputs
TTL/CMOS Logic 50MHz Serial Data Interface
12-Bit (4096 Steps) PWM Width Resolution
6-Bit (64 Steps) PWM Correction (±50% of Programmed PWM Width)
Up to 6.1kHz PWM Frequency (PWMCK = 25MHz)
Phase-Shift Option Reduces Switching Noise
Directly Controls Three LT3595A 16-Channel LED Drivers
Diagnostic Information: Sync Error/Open LED Flags
56-Pin (5mm × 9mm × 0.75mm) QFN Package
LT8500应用:
Large Screen Display LED Backlighting
Mono-, Multi-, Full-Color LED Displays
LED Billboards and Signboards
Motor Control
Industrial Control
Automated Test Equipment
Robotics
图1.LT8500方框图
图2.LT8500串行接口拓扑图
图3.LT8500采用5引脚拓扑驱动LT3595A的菊花链框图
图4.LT8500采用4引脚拓扑驱动LT3595A的菊花链框图
图5.单个LT8500驱动电阻镇流的48个LED串电路图
图6.单个LT8500实现48个DAC通路图
